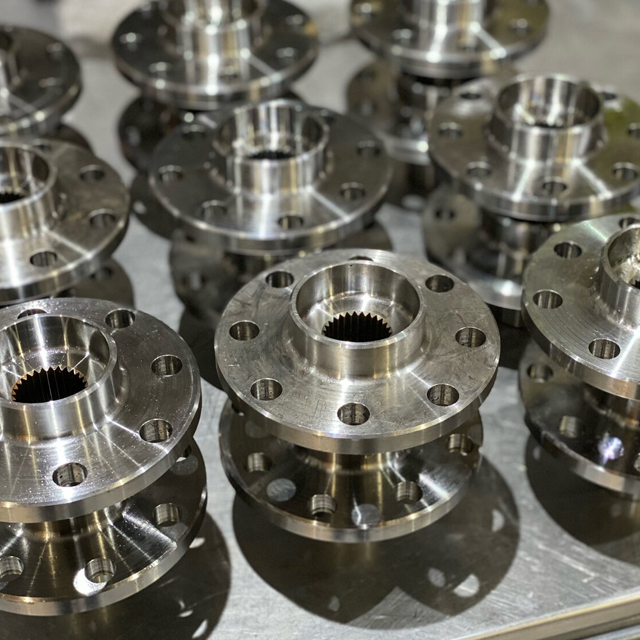

Everything You Need to Know About Titanium Gr 9 Flanges: Features, Applications, and Benefits

At Sandvik, we take pride in supplying high-performance industrial components that meet the demands of modern engineering. One such product is the Titanium Gr 9 Flanges, a key element in many critical applications due to their unmatched strength-to-weight ratio, corrosion resistance, and durability. Whether you're working in aerospace, marine, or chemical processing, these flanges deliver reliability under extreme conditions.

What are Titanium Gr 9 Flanges? Titanium Grade 9, also known as Ti-3Al-2.5V, is an alpha-beta titanium alloy containing 3% aluminum and 2.5% vanadium. Titanium Gr 9 flanges are forged or machined components designed to connect pipes, valves, pumps, and other equipment. What makes them unique is their exceptional combination of moderate strength, good weldability, and excellent resistance to corrosion—especially in seawater and acidic environments.

As one of the trusted Titanium Gr 9 Flanges Manufacturers, Sandvik ensures that each product meets strict quality standards and industry-specific requirements. We understand the importance of precision and performance in every flange we deliver.

Advantages of Titanium Gr 9 Flanges

Titanium Gr 9 flanges offer several advantages over traditional stainless steel or alloy steel alternatives:

  • Corrosion Resistance: Excellent resistance to saltwater, chlorides, and various acidic and alkaline environments.
  • Lightweight: Almost 40% lighter than steel, making them ideal for aerospace and transportation applications.
  • High Strength: Moderate tensile strength that balances durability with weight savings.
  • Biocompatibility: Safe for use in medical implants and food-grade systems.
  • Longevity: Reduced maintenance and replacement frequency due to superior wear resistance.

We’re known in the industry as one of the premier Titanium Gr 9 Flanges Suppliers, consistently providing durable, high-performance flanges for projects that demand excellence and precision.

Applications and Uses of Titanium Gr 9 Flanges

These flanges are utilized across various industries for their superior mechanical properties and corrosion resistance:

  • Aerospace: Used in hydraulic systems, fuel lines, and structural components due to their weight-to-strength ratio.
  • Marine Industry: Ideal for offshore platforms, submarines, and shipbuilding because of their resistance to seawater corrosion.
  • Chemical Processing: Suitable for piping systems exposed to reactive or corrosive chemicals.
  • Medical Equipment: Employed in surgical tools and implants due to biocompatibility.
  • Power Generation: Utilized in cooling systems and heat exchangers in nuclear and thermal power plants.

As trusted Titanium Gr 9 Flanges Stockists, we maintain a comprehensive inventory ready for immediate delivery to support urgent project requirements and minimize downtime.

Types of Titanium Gr 9 Flanges

There are several types of Titanium Gr 9 flanges, each tailored to specific system requirements:

  • Weld Neck Flanges: Designed for high-pressure applications and provide a secure, leak-proof connection.
  • Slip-On Flanges: Easy to install and suitable for low-pressure, non-critical systems.
  • Blind Flanges: Used to seal off pipelines or vessels for inspection or testing.
  • Socket Weld Flanges: Ideal for small-diameter pipes with high-pressure flow.
  • Threaded Flanges: Suitable for systems where welding is not feasible, commonly used in plumbing and small bore piping.

Sandvik has earned a global reputation as one of the leading Titanium Gr 9 Flanges Exporters, delivering top-tier components to clients across the aerospace, marine, and industrial sectors. Our commitment to quality, competitive pricing, and fast turnaround times makes us a partner you can rely on.

For more information or to request a quote, reach out to Sandvik—your one-stop solution for premium-grade Titanium Gr 9 flanges engineered for performance and durability.

Specification of Titanium Gr 9 Flanges

Titanium Flanges Specification : ASTM B363 / ASME SB363
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.

Equivalent Grades of Titanium Gr 9 Flanges

STANDARD UNS WNR.
Titanium Gr 5 R56320 3.7195

Chemical Composition of Titanium Gr 9 Flanges

Al Ti V
max max max
3 95 2.5

Mechanical Properties of Titanium Gr 9 Flanges

Element Hardness Brinell Hardness Knoop Hardness Rockwell Tensile Strength Yield Strength
Titanium Gr. 9 256 278 24 620 Psi 500 MPa
